Challenger 604

Active

Challenger 604 aircraft

GALLERY

OVERVIEW

48/96-Month Inspections in Progress at West Star | GE OnPoint | Precision Plus Avionics

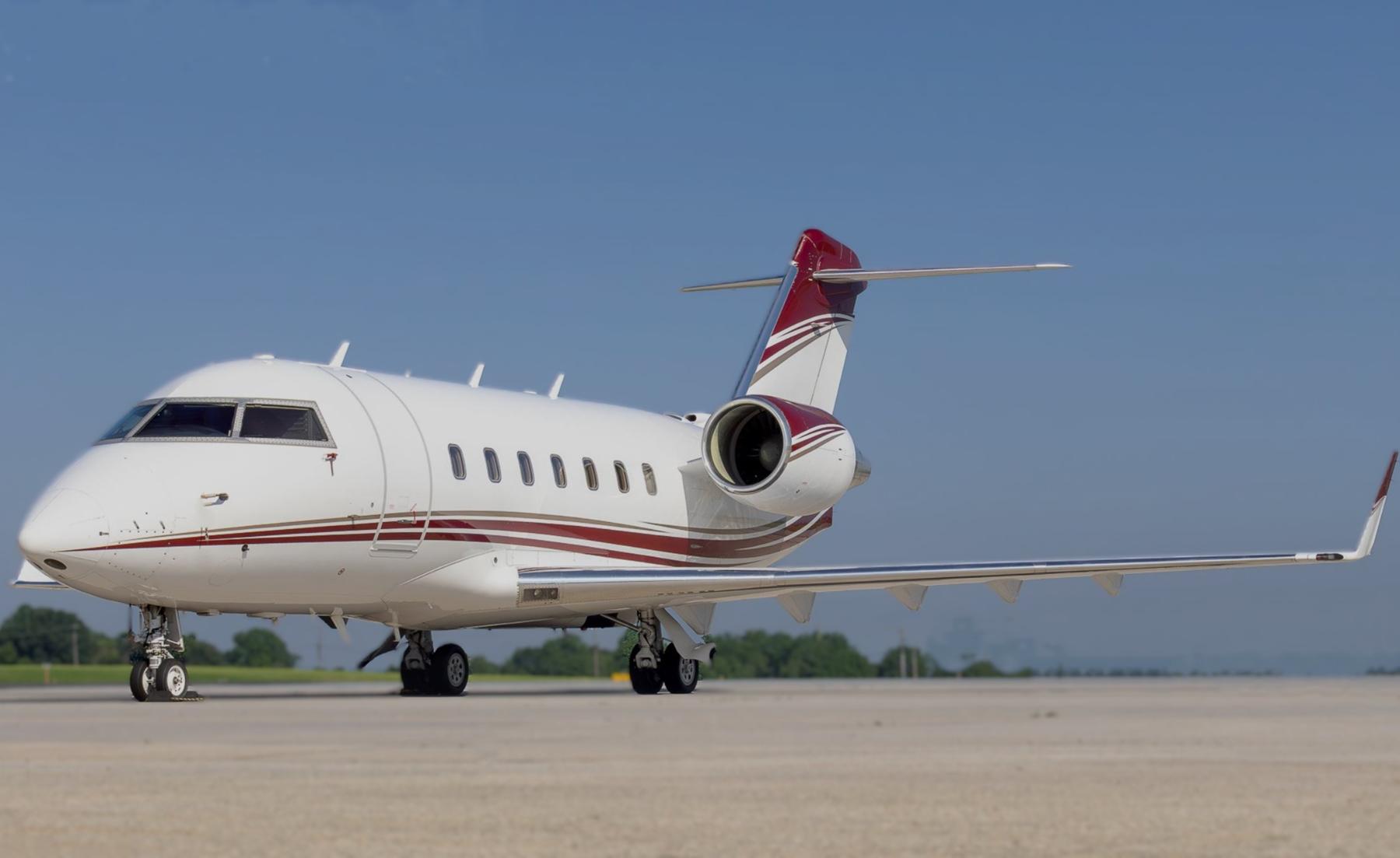

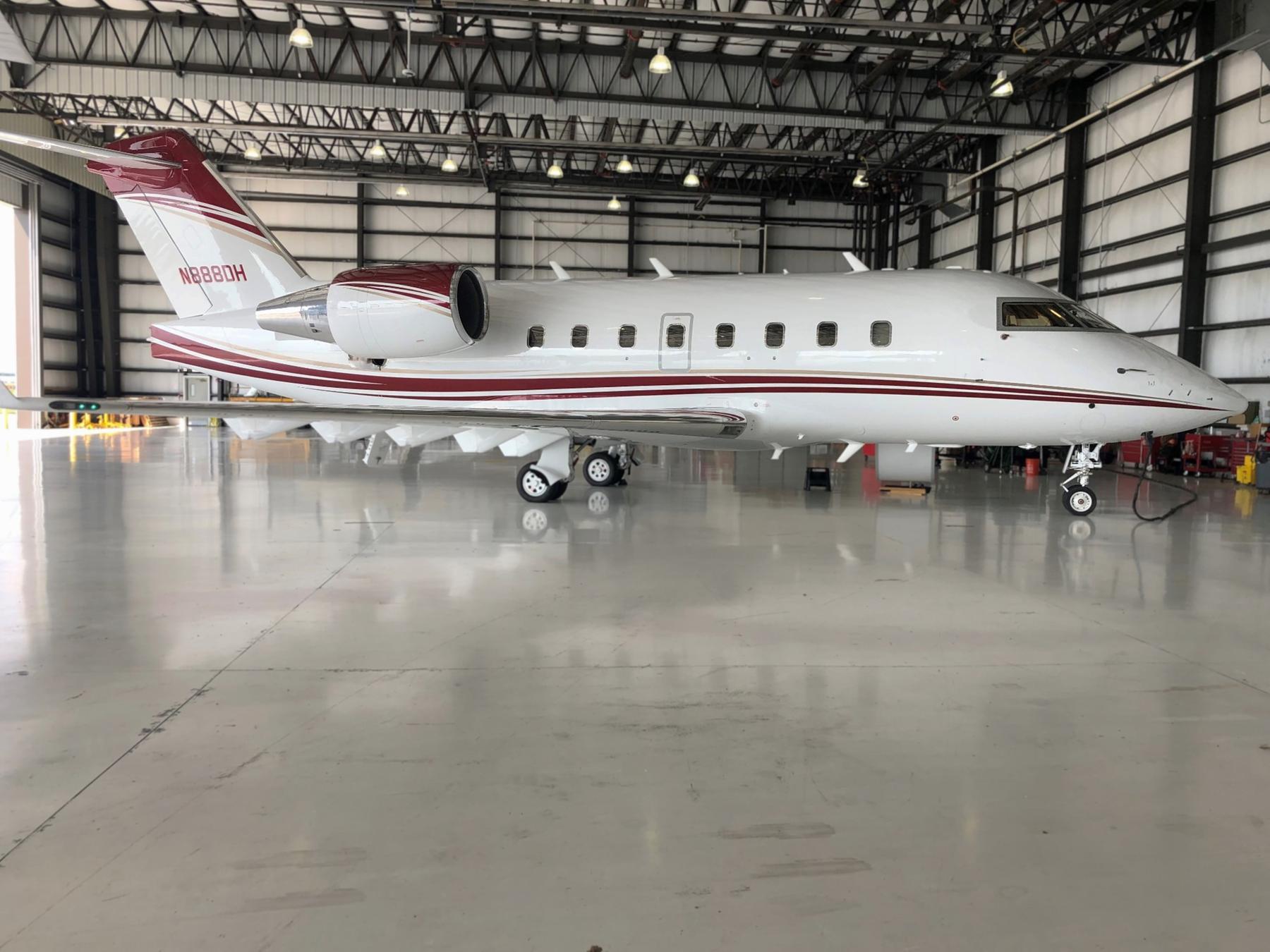

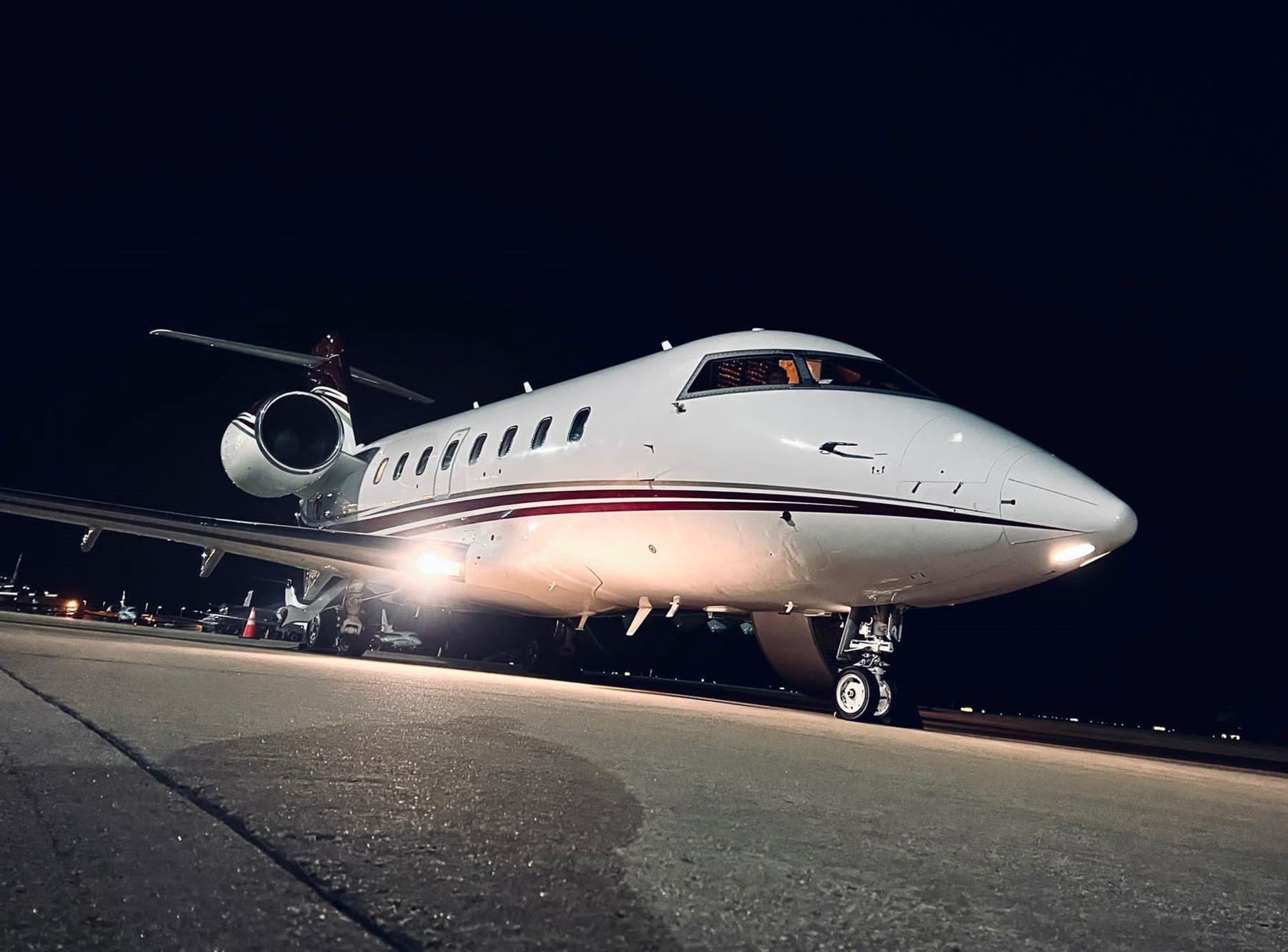

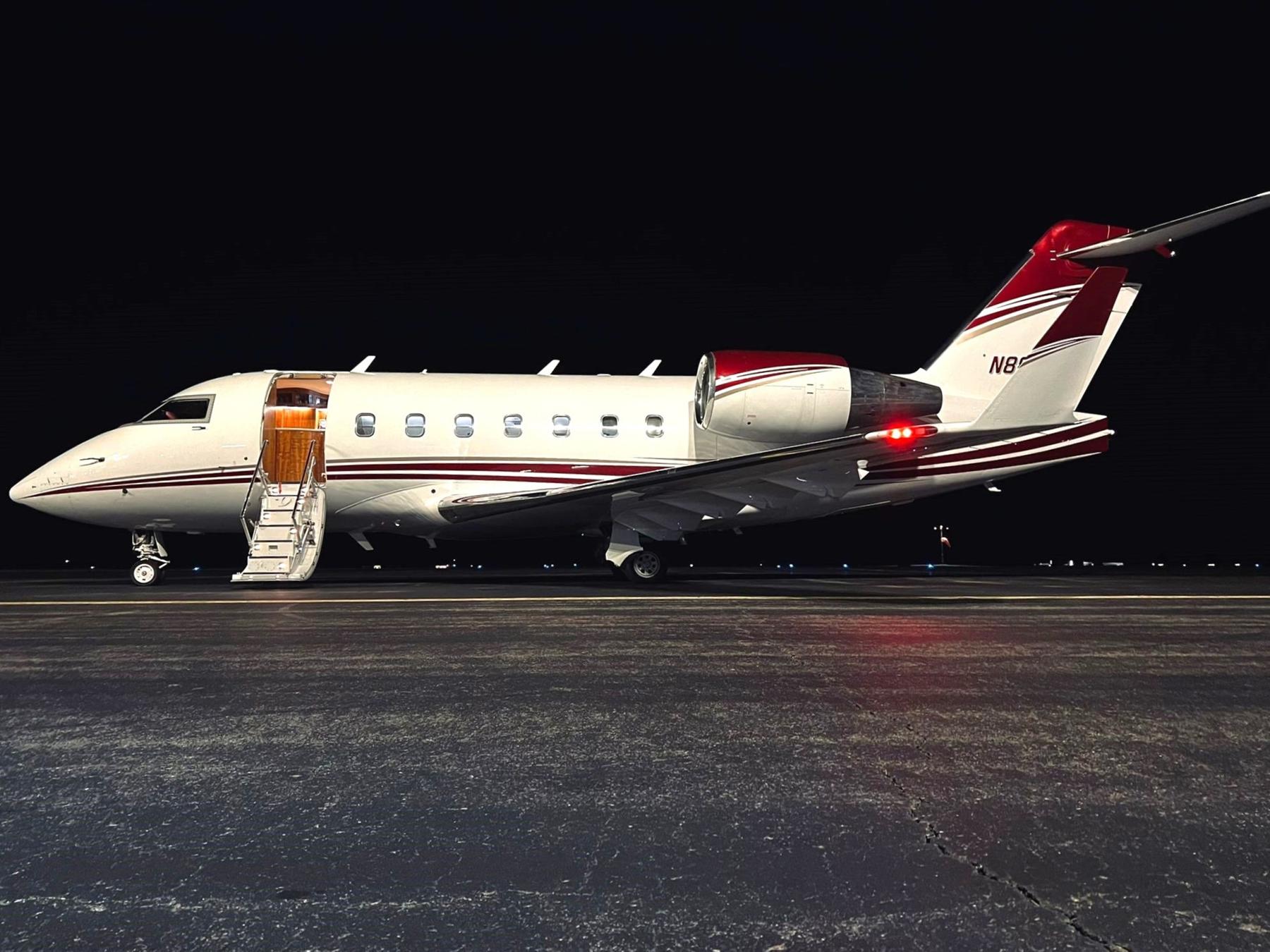

This Challenger 604 combines proven intercontinental performance with a spacious, exceptionally quiet cabin measuring more than eight feet wide. Its ten-passenger executive configuration features a forward four-place club, an aft four-place divan opposite two individual club seats, a full-service galley and a private aft lavatory.

This aircraft is equipped with the Rockwell Collins Pro Line 4 Precision Plus avionics upgrade featuring CPDLC/FANS-1/A+, WAAS/LPV, triple FMS with GPS, HF-9000, TCAS II 7.1 and a flight data recorder with expanded parameters. Additional highlights include Gogo AVANCE L3 Wi-Fi, Airshow, an extensively refurbished interior and enrollment on the GE OnPoint engine program.

Contact Valor Jets for additional details or to schedule a private viewing.

Highlights

  • GE OnPoint Engine Program
  • 48/96-Month Inspections at West Star
  • Precision Plus | CPDLC/FANS-1/A+
  • 2021 West Star Interior | AVANCE L3 Wi-Fi | Airshow

Airframe

  • Hours Since New 7,657
  • Landings Since New 4,640

Engines

GE CF34-3B Left Right
Serial Numbers 872021 872022
Hours Since New 7,657 7,657
Cycles Since New 4,640 4,640
On Condition OC OC

GE OnPoint: $584.92 per engine, per hour.

APU

  • Honeywell GTCP36-150
  • Hours Since New 5,484
  • Serial Number P-487C

Inspection

  • Maintenance Tracking via VERYON
  • 12/24-Month Inspection | C/W 3-2026
  • 36-Month Inspection | C/W 3-2026
  • 48/96-Month Inspections | In Progress at West Star Aviation
  • SB 72-0347 Engine VSV | C/W

Avionics

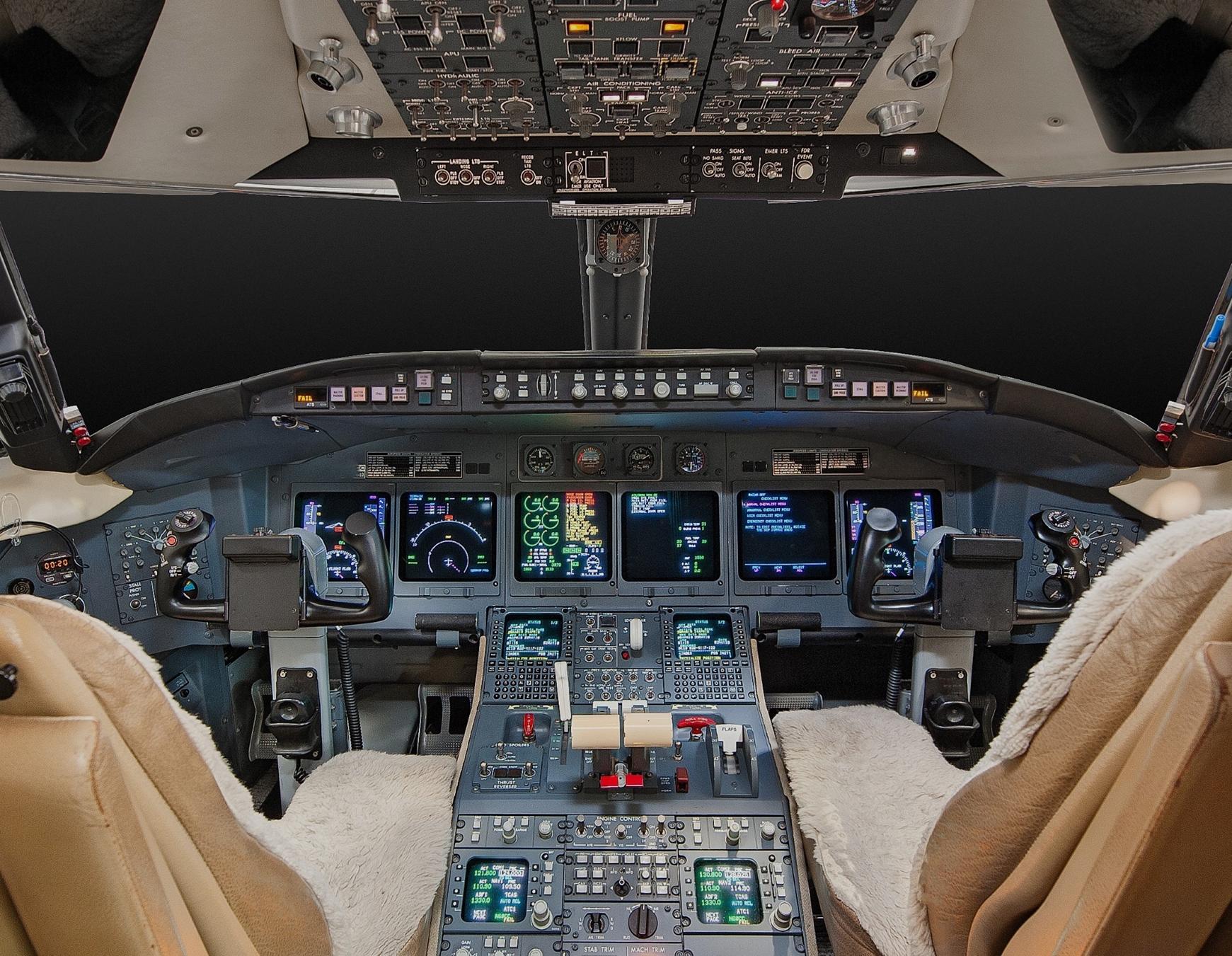

Collins Pro Line 4 | Precision Plus

CPDLC/FANS-1/A+ | WAAS/LPV | Triple FMS | TCAS II 7.1

This Challenger 604 is equipped with the Rockwell Collins Pro Line 4 Precision Plus avionics suite for worldwide communications, navigation and surveillance capabilities.• ADF: Dual Collins ADF-462

  • Autopilot: Dual Collins
  • Communication Radios: Dual Collins VHF-422D with 8.33 spacing
  • CVR: FA2100 SSCVR
  • DME: Dual Collins DME-442
  • EFIS: Collins FD-4077 six-tube displays
  • Flight Director: Dual Collins
  • FMS: Triple Collins FMS-6000 with 6.0 software (WAAS/LPV)
  • GPS: Dual Collins GPS-4000S (WAAS/LPV)
  • High Frequency: Collins HF-9000 with SELCAL
  • Inertial Nav: Triple Litton LTN-101 LASEREF
  • Navigation Radios: Dual Collins VIR-432 with FM immunity
  • Radar Altimeter: Dual Collins ALT-55B
  • TAWS: Honeywell Mark VII EGPWS
  • TCAS: TCAS II TTR-2100 with Change 7.1
  • Transponder: Dual Collins TDR-94D (ADS-B)
  • Weather Radar: Collins TWR-854 multi-color

Additional Information

Interior and Exterior

Elegant Ten-Passenger Executive Cabin

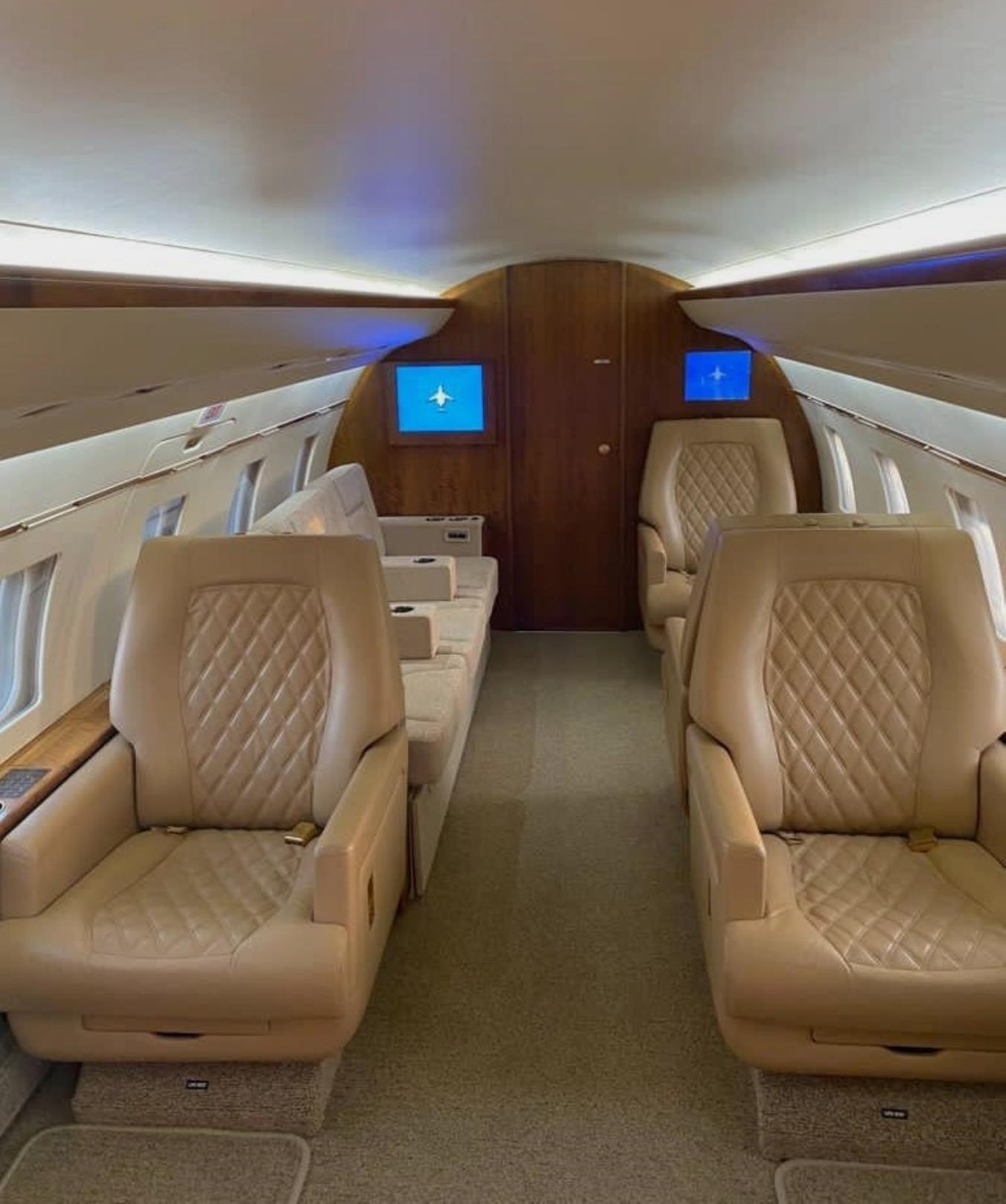

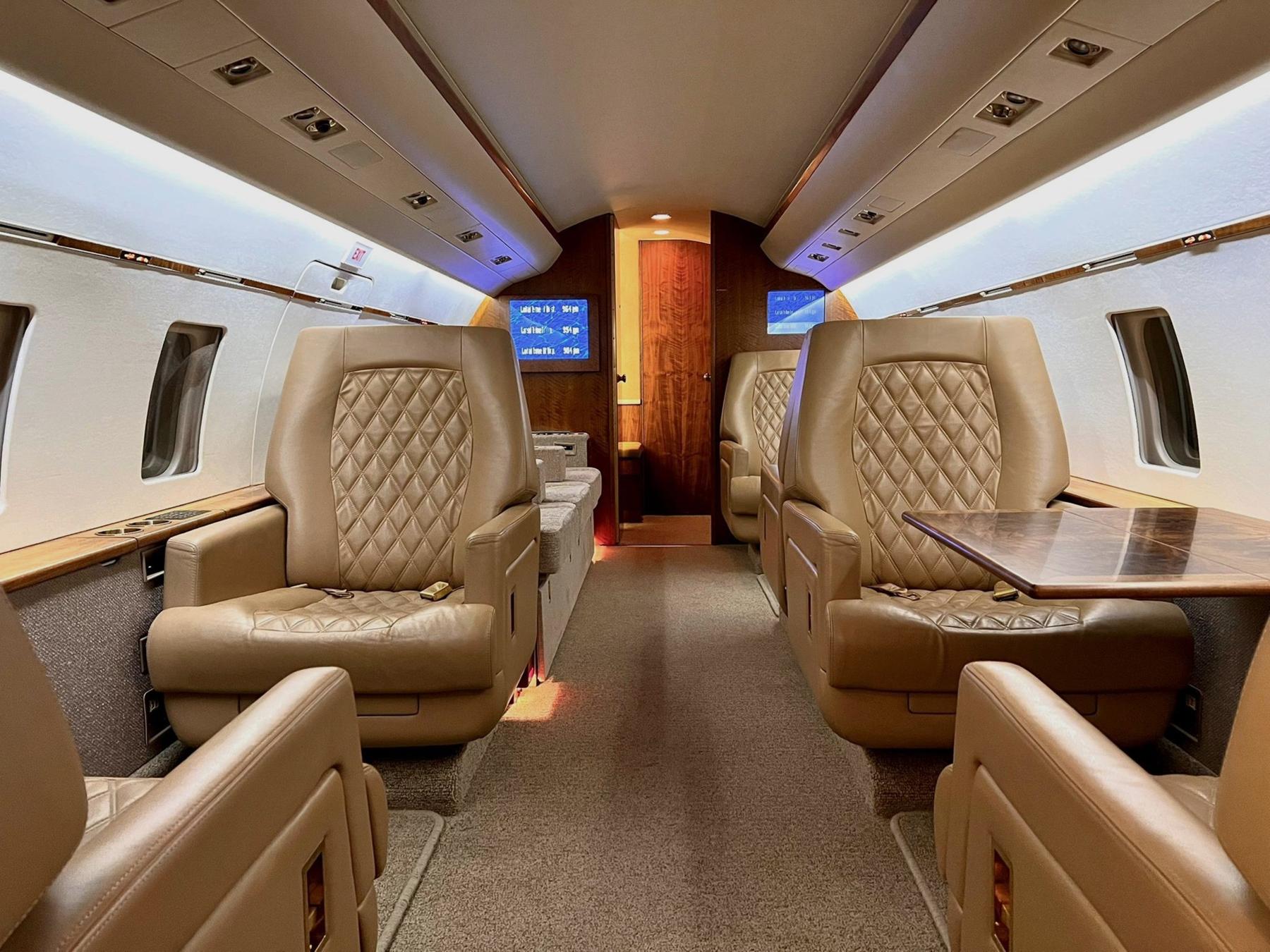

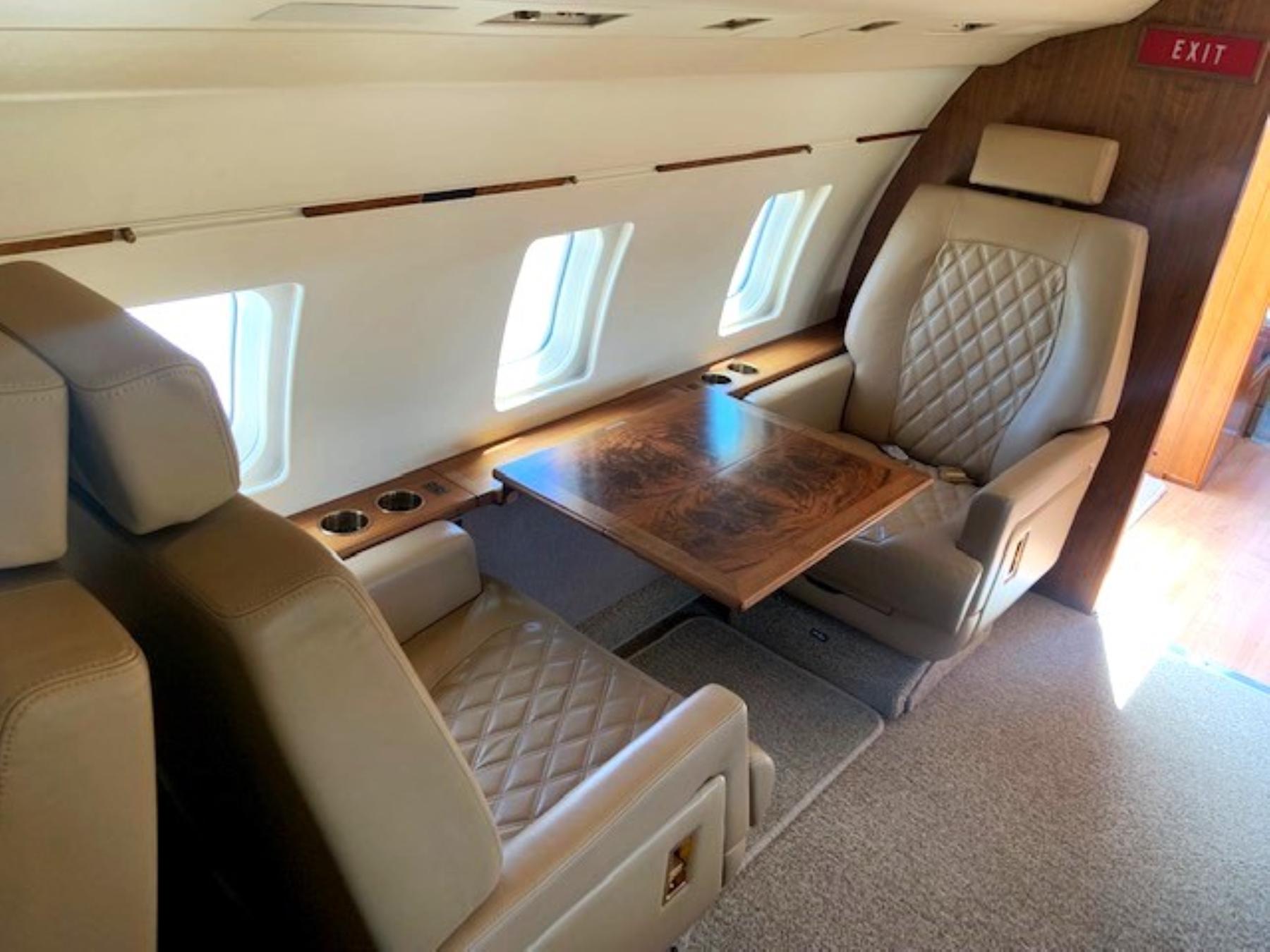

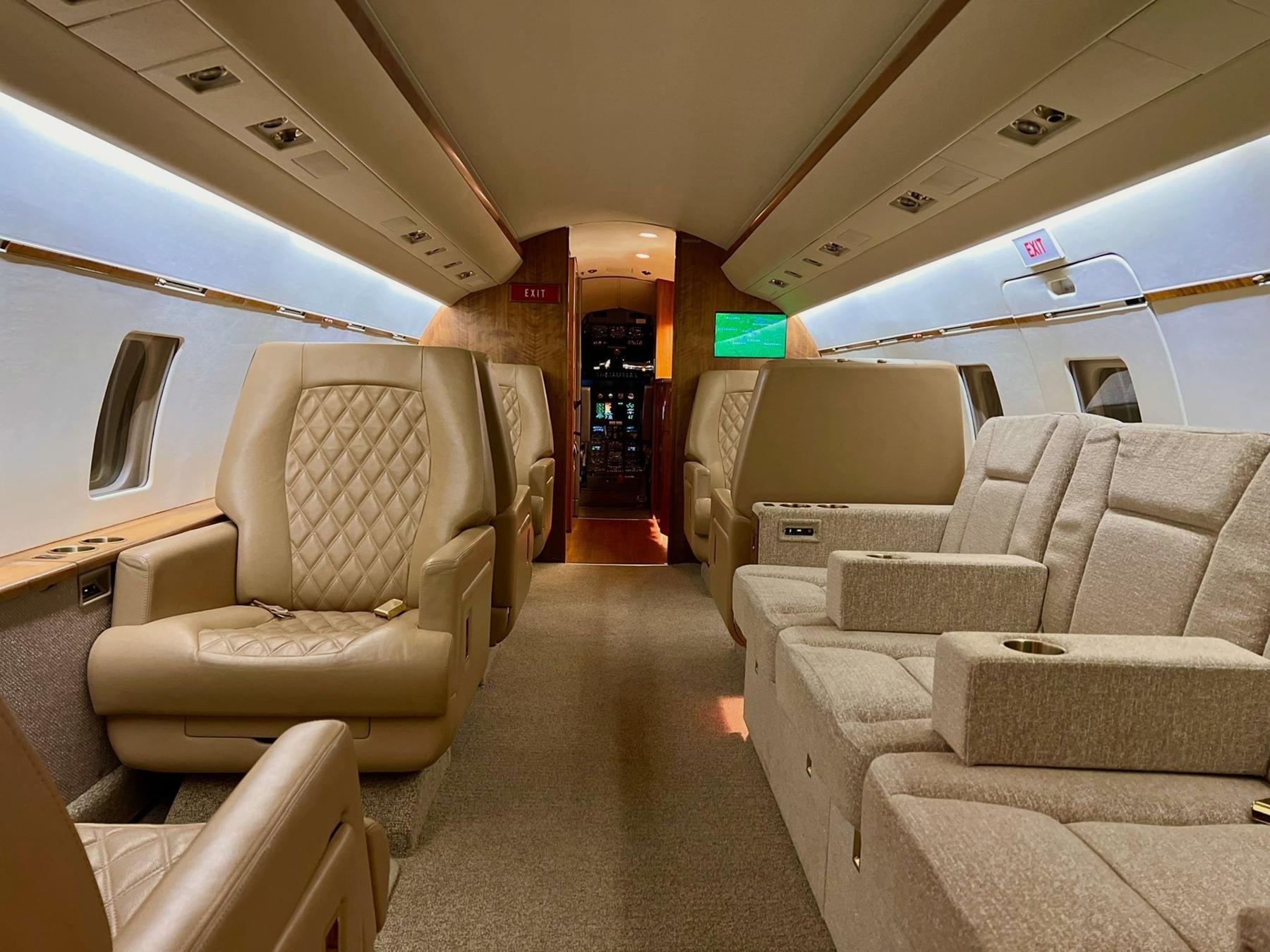

West Star Interior Refurbishment | AVANCE L3 Wi-Fi | 2018 Exterior This Challenger 604 features an elegant ten-passenger executive interior with beige leather seating and diamond-stitched inserts. The cabin is configured with a forward four-place club, an aft right-hand four-place divan opposite two individual club seats, and a private aft lavatory.

2021 WEST STAR INTERIOR REFURBISHMENT

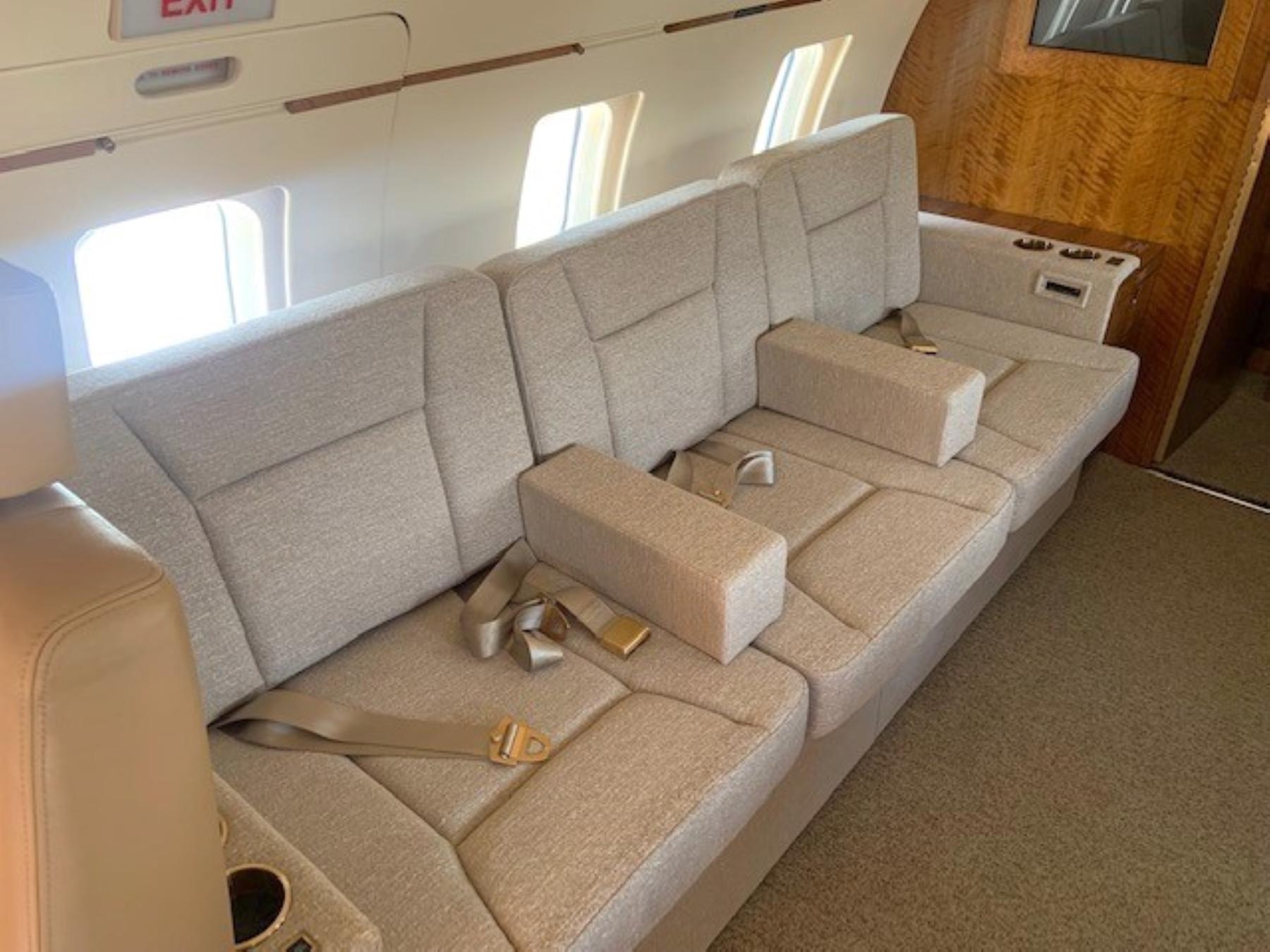

New 100% wool carpeting throughout the cabin, lavatory and baggage compartment | Lonwood Maple CT entry flooring | Recovered four-place divan with new foam, Wesley Fawn fabric and matching seatbelt webbing | Almond Ultra leather-covered window-shade rails | Newly veneered aft cabin bulkheads, lavatory door and monitor shroud

CABINETRY & FULL-SERVICE GALLEY

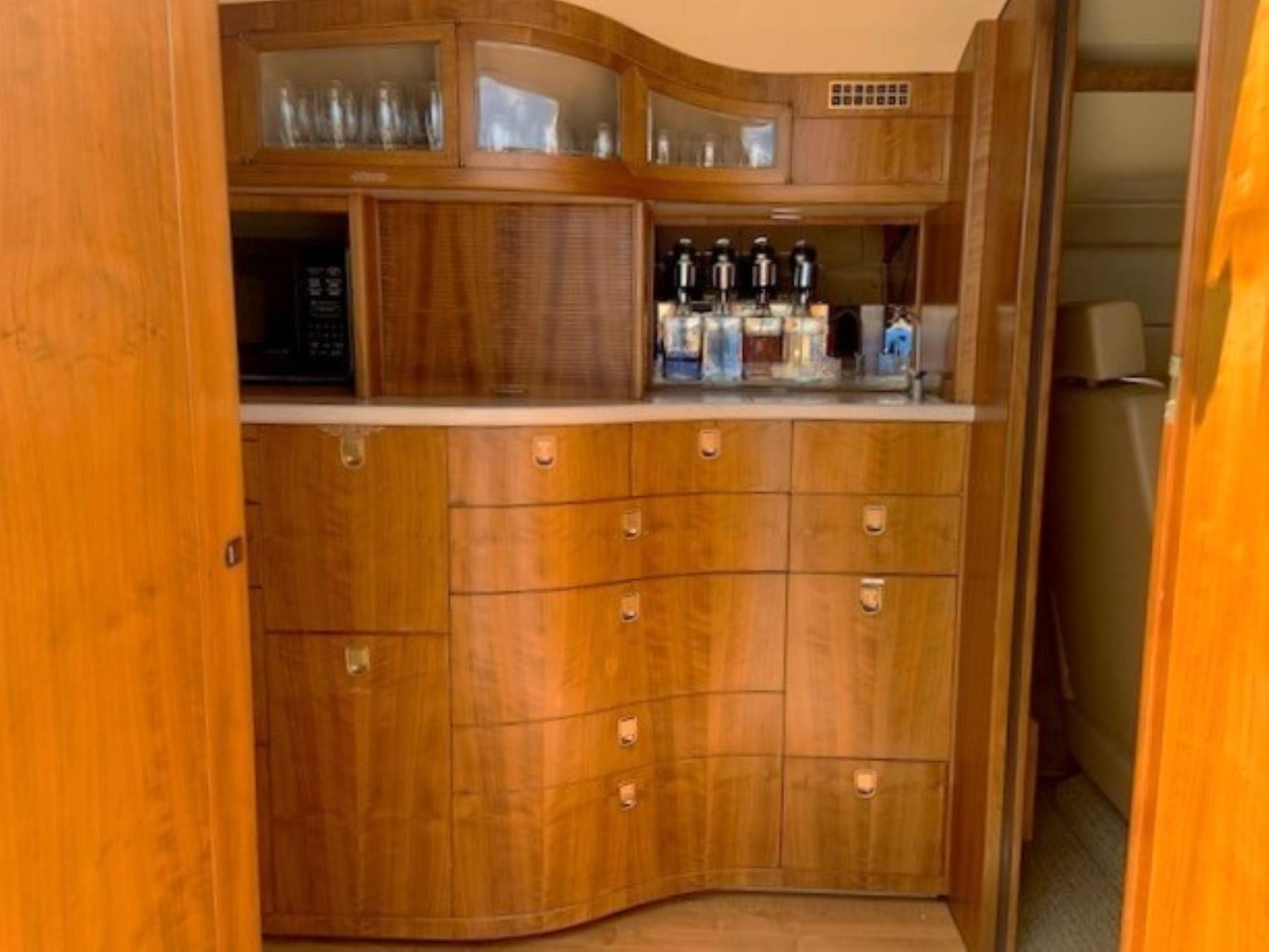

High-gloss medium Makore figured wood veneer with brushed-gold plated accents. The galley provides a generous work surface, overhead dishware and glass storage, beverage center, ice bin, microwave, warming oven, coffeemaker and multiple storage compartments.

ENTERTAINMENT & CONNECTIVITY

Gogo AVANCE L3 Wi-Fi | Gogo Vision | Text & Talk | Airshow | XM Radio | Forward and aft bulkhead monitors | Conveniently located power outlet

EXECUTIVE CONFIGURATION

  • Forward four-place club
  • Aft right-hand four-place divan
  • Two individual club seats
  • Private aft lavatory

ADDITIONAL EQUIPMENT

  • Precision Plus avionics upgrade
  • CPDLC/FANS-1/A+
  • Collins DBU-5010E worldwide database unit
  • Artex 406 MHz ELT
  • AlliedSignal Mark VII EGPWS
  • Collins SAT-906 four-channel SATCOM
  • Dual Collins ADC-850E air data computers
  • Triple Collins DCU-4002 units
  • HIRF lightning protection
  • Winglets
  • Gogo AVANCE L3 Wi-Fi installed by West Star Aviation in 2021
  • Gogo Vision | Text & Talk
  • Integrated cabin wireless antennas | Cabin data port

FLIGHT DATA RECORDER

Flight data recorder with expanded parameters

CAPABILITIES

  • RVSM
  • ADS-B & WAAS/LPV
  • CPDLC/FANS-1/A+
  • TAWS & TCAS II 7.1
  • Hi Frequency Radio
  • Integrated COMM/NAV
  • RNAV & RNP-Approach
  • HIRF Lightning Protection

WEIGHTS & CAPACITY

  • Max Takeoff Weight 48,200 lbs.
  • Max Ramp Weight 48,300 lbs.
  • Max Landing Weight 38,000 lbs.
  • Zero Fuel Weight 32,000 lbs.
  • Usable Fuel 19,850 lbs.
  • Fuel Capacity 2,962 US gal
